Step ladder vs. Manhole Steps for Shafts

Are step ladders or manhole steps the better choice for shafts? Learn about the key differences, applications, and safety requirements for modern access systems in civil engineering.

Whether it’s a sewage shaft, sewer shaft, or utility shaft: entering underground structures is one of the most safety-critical situations in civil engineering. This is because maintenance and inspection work often takes place in confined spaces. At the same time, shaft depths, materials, and usage frequencies vary considerably.

Choosing the right access system therefore determines not only comfort but, above all, safety, compliance with standards, and long-term cost-effectiveness.

In practice, manhole steps have established themselves as the standard solution in civil engineering. Access ladders are used in addition when there are special requirements regarding comfort or usage. Both systems serve the same purpose but differ significantly in design, application, and requirements.

What are Step Ladders?

Step ladders are permanently installed ladder systems that enable safe entry into shafts. They are also known as shaft ladders and consist of two side rails and cross rungs that ensure a smooth and ergonomic ascent.

Construction and Function

Step ladders are typically made of corrosion-resistant materials such as stainless steel or aluminum. Stainless steel shaft ladders, in particular, are widely used because they offer high corrosion resistance and a long service life. The design is engineered for high load-bearing capacity and is either secured directly within the shaft or retrofitted. The uniform spacing between rungs ensures a safe sequence of steps and facilitates ascending and descending even at greater depths.

Typical Applications

Step ladders are used where shafts are regularly accessed or where particularly high safety requirements apply. These include deep shafts and structures, industrial and utility facilities, as well as shafts requiring frequent maintenance.

Advantages of Step Ladders

• High stability and secure footing when climbing

• Uniform construction reduces physical strain and missteps

• Easy to replace and retrofit compared to integrated solutions

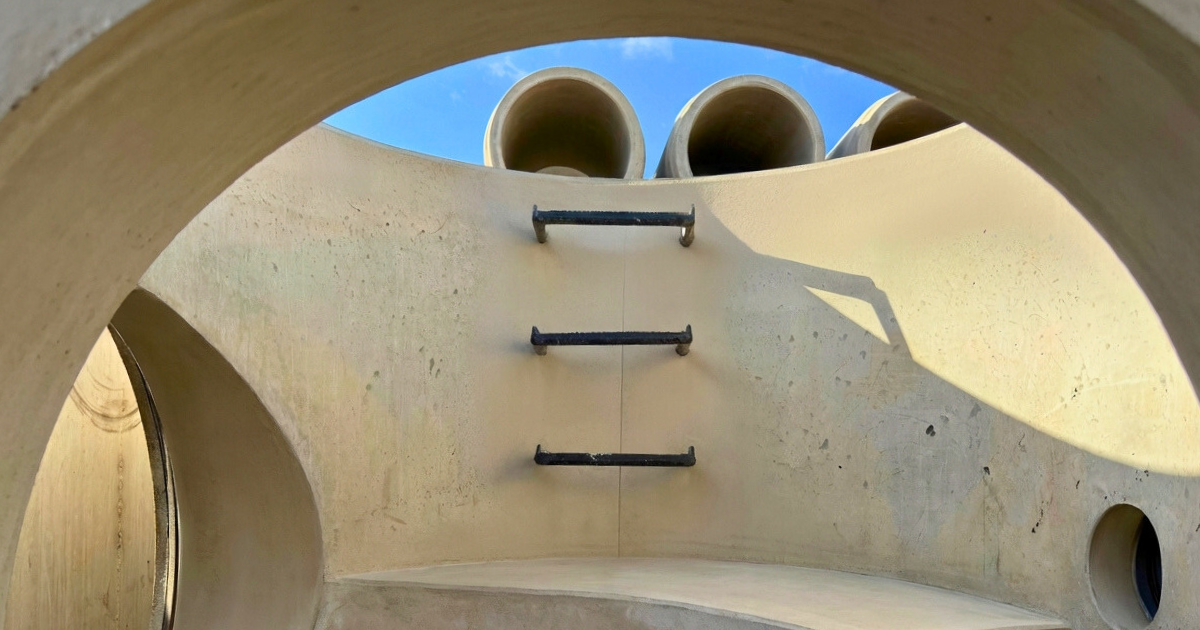

What are Manhole Steps?

Manhole steps are individual treads that are permanently integrated into the manhole wall. They form what are known as stepways and are among the classic access systems used in civil engineering.

Construction and Function

A manhole step typically consists of a metal core encased in plastic. Such plastic steps or plastic-coated steps offer additional corrosion protection and a slip-resistant surface. The sturdy metal core, often made of stainless steel, ensures load-bearing capacity and long-term safe use even under demanding conditions. The manhole steps are either built into the shaft wall during the manufacture of precast concrete components or anchored in place later.

Typical Applications

Manhole steps are widely used primarily in concrete sewage shafts, sewer shafts, and standardized infrastructure structures.

Advantages of Manhole Steps

• A compact and cost-effective solution, ideal for standardized shaft structures.

• Can be integrated directly into precast concrete components, thereby reducing installation effort and minimizing potential sources of error.

• A proven system in civil engineering that has been established for decades in wastewater and sewer shafts.

Manhole steps are the most commonly used solution in civil engineering for good reason. They can be efficiently integrated into existing production processes, are durable, and meet all relevant standard requirements. Especially for large quantities, they offer clear economic advantages and a high degree of planning reliability.

Step ladders vs. Manhole Steps: Which is the better Choice?

Whether step ladders or manhole steps are the better solution depends heavily on the specific application. A direct comparison shows which solution is more suitable in practice.

1. Safety

Step ladders offer a high degree of safety due to their lateral guidance, especially for frequent access. Manhole steps are also a safe solution when installed in accordance with standards and have proven themselves millions of times over in practice. The key here is adherence to the prescribed clearances and proper integration into the shaft wall.

2. Installation and Integration

Manhole steps are integrated directly into precast concrete elements and are thus an integral part of the shaft structure. This reduces installation effort and ensures a permanently stable solution.

Step ladders can be flexibly installed or retrofitted, which makes them particularly suitable for renovations.

3. Comfort and Ergonomics

Step ladders allow for a smooth and less strenuous ascent. This is a major advantage, especially in deep shafts. Manhole steps serve their purpose reliably, but are less comfortable and require more physical effort.

4. Maintenance and Replacement

Step ladders can be replaced or repaired relatively easily if necessary.

Manhole steps are permanently installed. Replacement is significantly more complex and often only possible with structural modifications.

5. Costs

Manhole steps are significantly more cost-effective to purchase and install and are therefore the preferred solution in traditional civil engineering.

Step ladders entail higher investment costs, which are justified primarily when special requirements are involved.

Standards and Regulations for Access Systems

Access technology systems are subject to clear technical requirements. These apply to both their design and installation.

For manhole steps, DIN 19555 is particularly relevant. Among other things, it defines the shape, dimensions, and requirements for materials and load-bearing capacity. General standards and safety regulations also apply to ladder systems, such as those regarding load-bearing capacity and use in commercial settings.

Rung Spacing and Installation Dimensions

The spacing between rungs on ladders is regulated by standards and is crucial for safe and ergonomic access. Spacing that is too wide or uneven increases the risk of accidents and does not comply with applicable regulations.

Safety requirements

Modern access systems must meet several criteria to ensure safe operation.

• Slip-resistant surfaces

• High corrosion resistance

• Sufficient load-bearing capacity

• Permanent anchoring to the structure

Which Access System is right for my Application?

The decision regarding an access system should always be based on the specific application.

When Manhole Steps are the best Choice

Manhole steps are the preferred solution for the majority of civil engineering applications and have established themselves as a reliable standard in this field. They are particularly suitable for standardized manholes where a cost-effective, durable, and code-compliant solution is required. Direct integration into precast concrete elements creates a robust system that has proven itself in practice over many years.

When Step Ladders are the better Choice

Step ladders are primarily used when there are specific requirements regarding comfort or frequency of use. This is the case, for example, with very deep shafts or when access is frequent. In these situations, they can offer ergonomic advantages.

Hybrid Solutions and special Cases

In practice, combinations are also used. For example, existing manhole steps can be supplemented or partially replaced by additional systems. Especially during renovations, it is worth taking a close look at the existing infrastructure.

Safety Requirements for Modern Access Systems

Safety is always the top priority for access systems. Errors in planning, material selection, or installation can have serious consequences.

Proper installation that complies with all regulatory requirements is crucial. Equally important is the selection of suitable materials that will function reliably even under difficult conditions.

Regular inspections and maintenance further help minimize risks and extend the service life of the systems.

Companies that prioritize quality early on not only prevent accidents but also avoid high follow-up costs resulting from repairs or system failures.

Choose between Step Ladders and Manhole Steps based on your specific Needs

Step ladders and manhole steps serve the same purpose but are designed for different requirements.

• Manhole steps have become the standard solution in civil engineering. They stand out for their cost-effectiveness, ease of integration, and high reliability in daily use.

• Step ladders offer advantages in specific applications, such as frequent access or special ergonomic requirements.

It is crucial to select the access system that best suits the application. In most cases, step ladders are the most technically and economically sensible solution for civil engineering.

Planning and Implementing Access Systems Correctly

Selecting the right access system is only the first step. Equally important is thorough planning and implementation throughout the entire supply chain.

From specification to manufacturing to installation, all components must be coordinated. This is exactly where experienced partners like Infrastep can help.

Are you planning a civil engineering project or looking to have access systems manufactured? Send us a message. We’ll guide you from the initial idea to the finished solution and ensure that your access system is technically sound, cost-effective, and compliant with standards.
