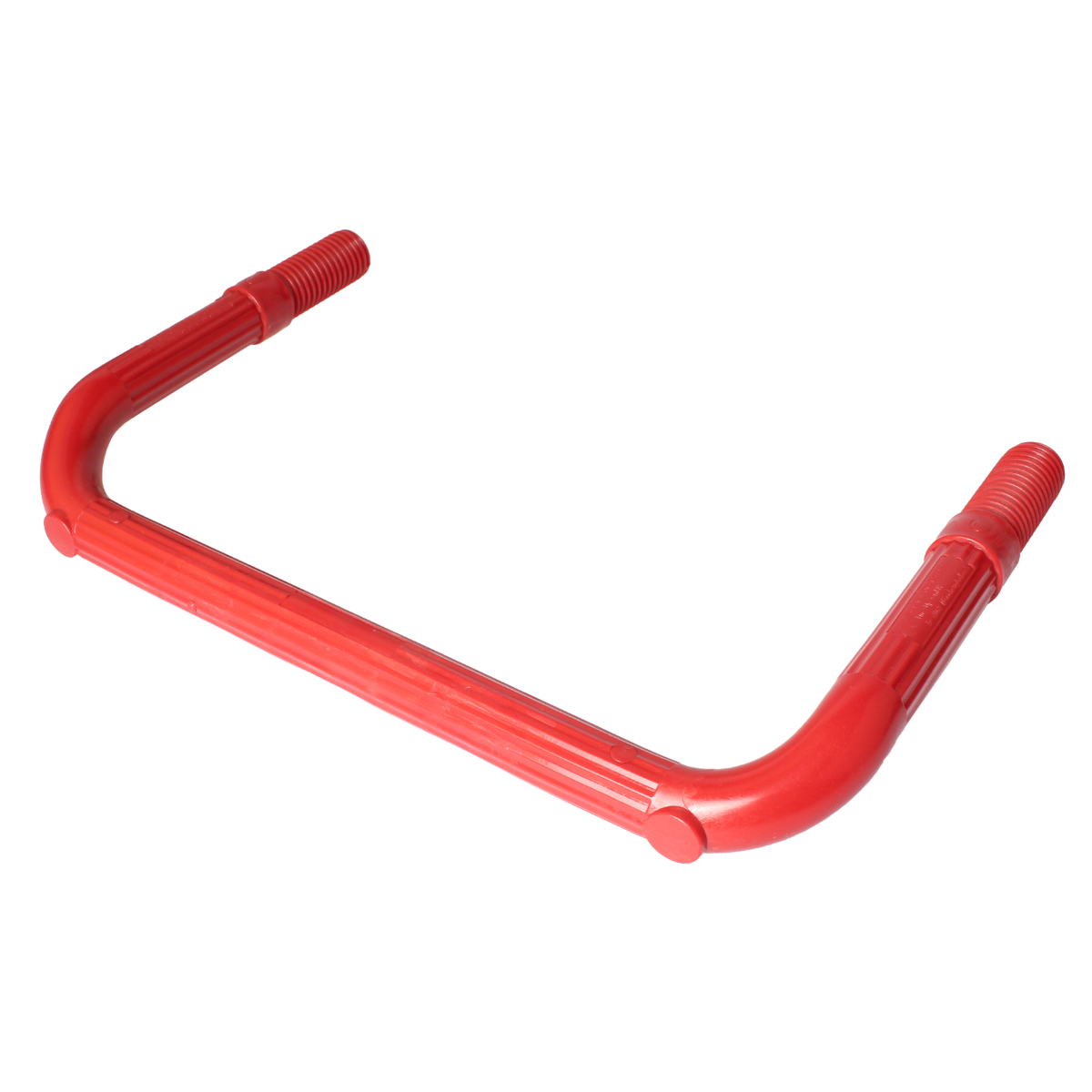

Manhole Steps Stainless Steel V4A, red, Type A (identical construction MSU), Cl.2

Manhole Steps Stainless Steel V4A, red, Type A (identical construction MSU), Cl.2

Technical Data

Item number:

910534

Identification:

LU-JX-29(A)

Coating:

PEHD

Material:

Stainless Steel V4A

Colour:

red (RAL3000)

Diameter:

26mm

Thread:

spiral-shaped

Standard:

DIN19555 und EN13101

Request now

Specification text

Manhole steps in accordance with DIN 19555 and EN 13101 for single-run ladder systems: Infrastep or equivalent for single-run ladder systems (manhole steps) in type A identical construction MSU, class 2. Material: stainless steel V4A with PEHD coating, colour: red (RAL3000), deliver and install with a step height of 250–280 mm.

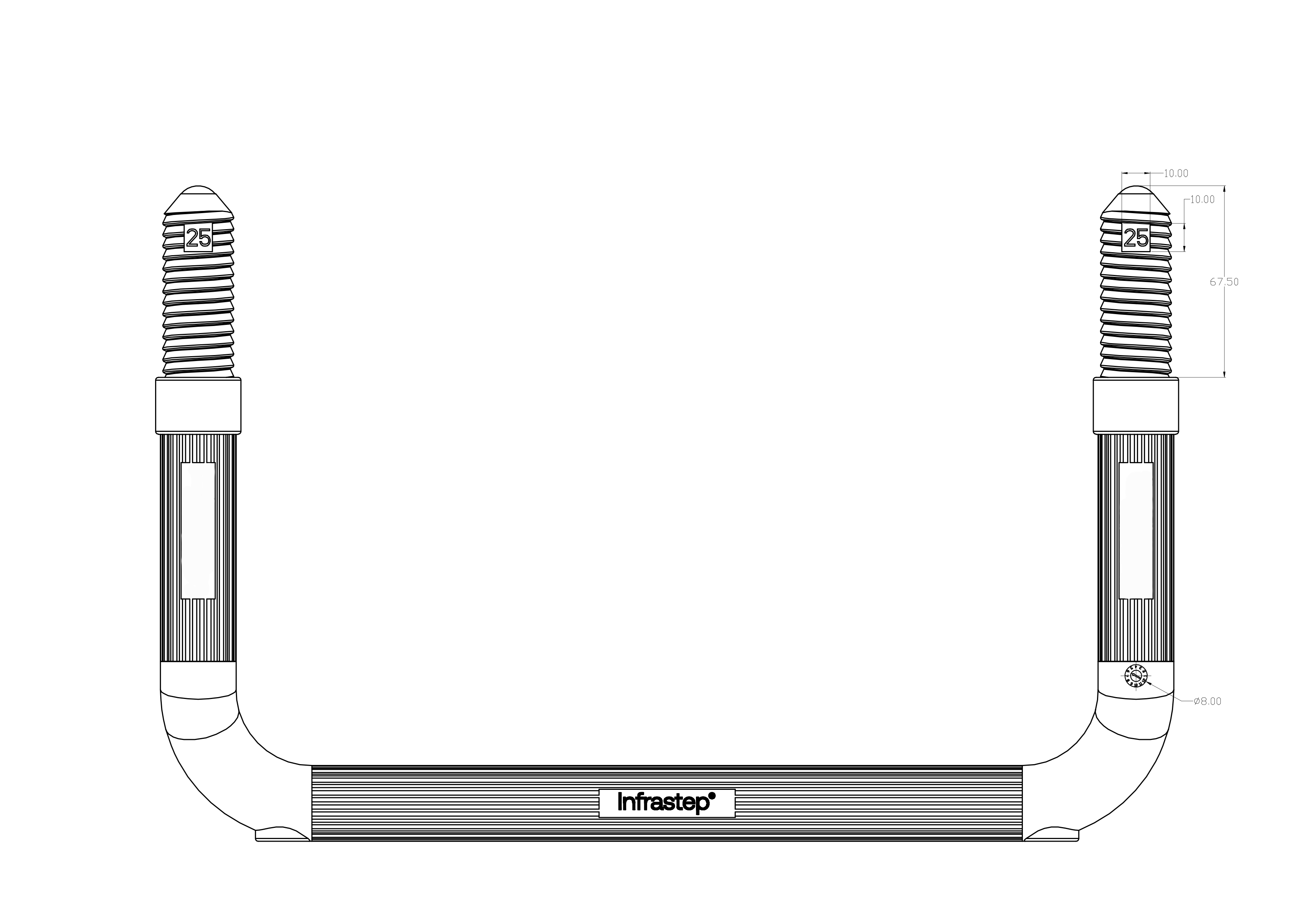

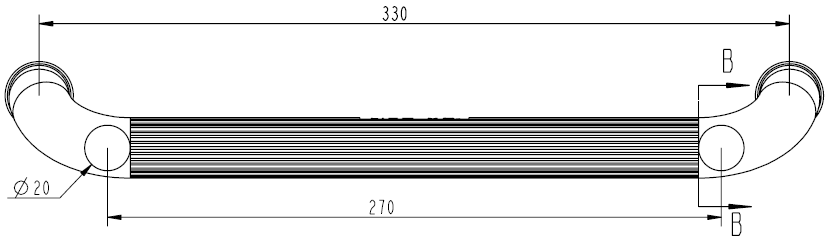

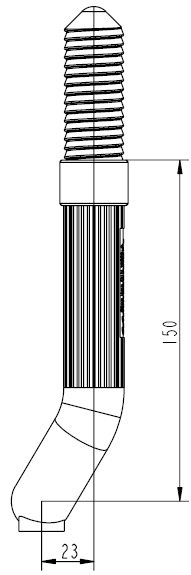

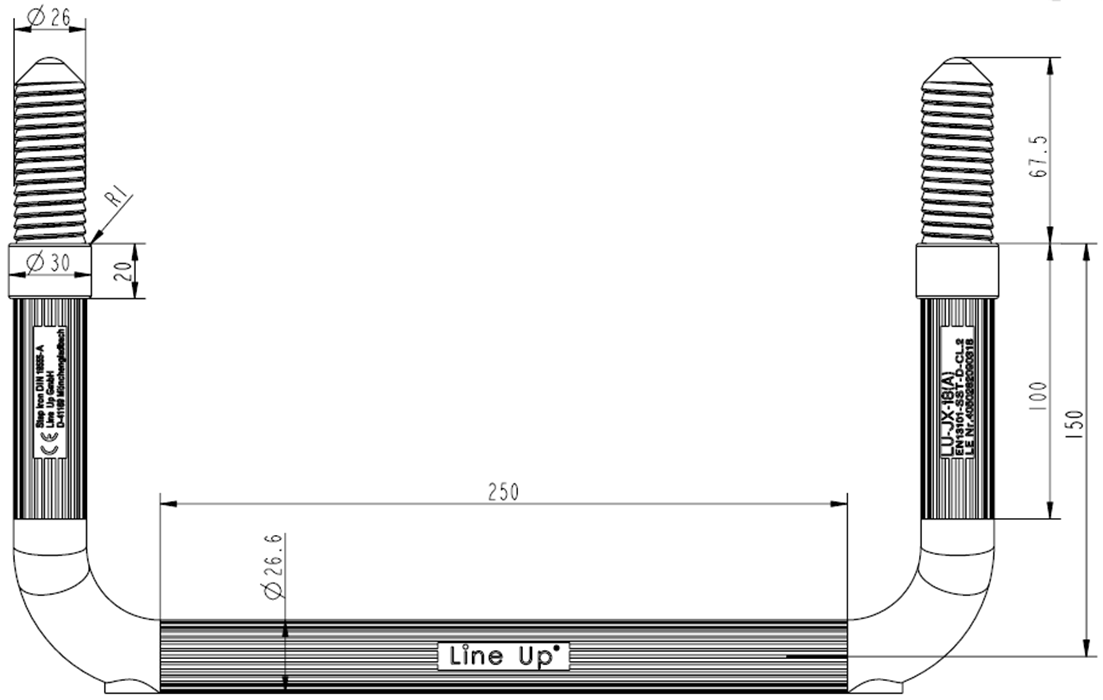

Technical drawings

Manhole Steps Stainless Steel V4A, red, Type A (identical construction MSU), Cl.2
Manhole Steps Stainless Steel V4A, red, Type A (identical construction MSU), Cl.2
Manhole Steps Stainless Steel V4A, red, Type A (identical construction MSU), Cl.2
