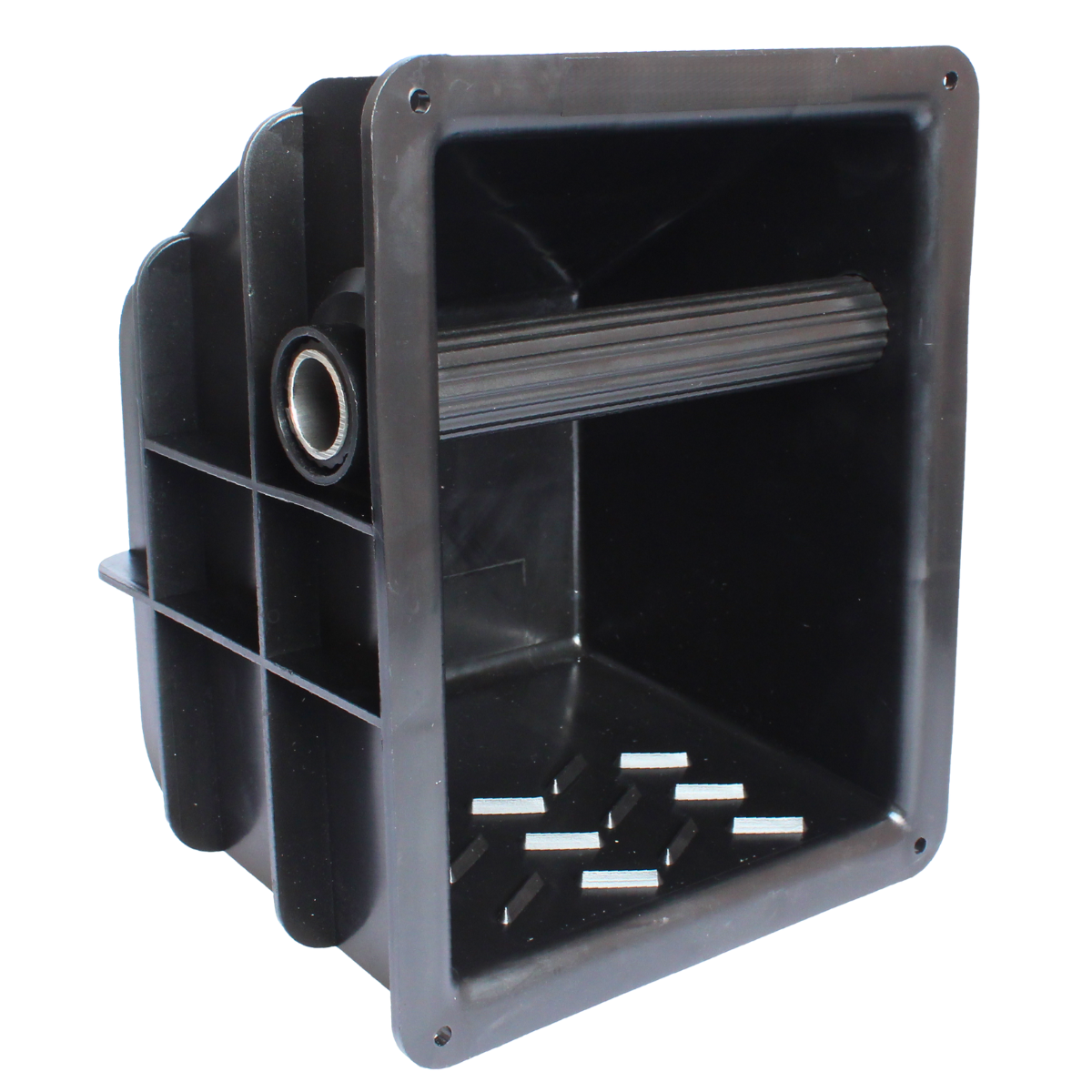

Pocket Manhole Steps with handle
Technical Data
Item Number: | 910533 |
Box material: | Polypropylene (DIN 8077, DIN 8078) |
Handle material: | Stainless steel, D20mm, plastic-coated |

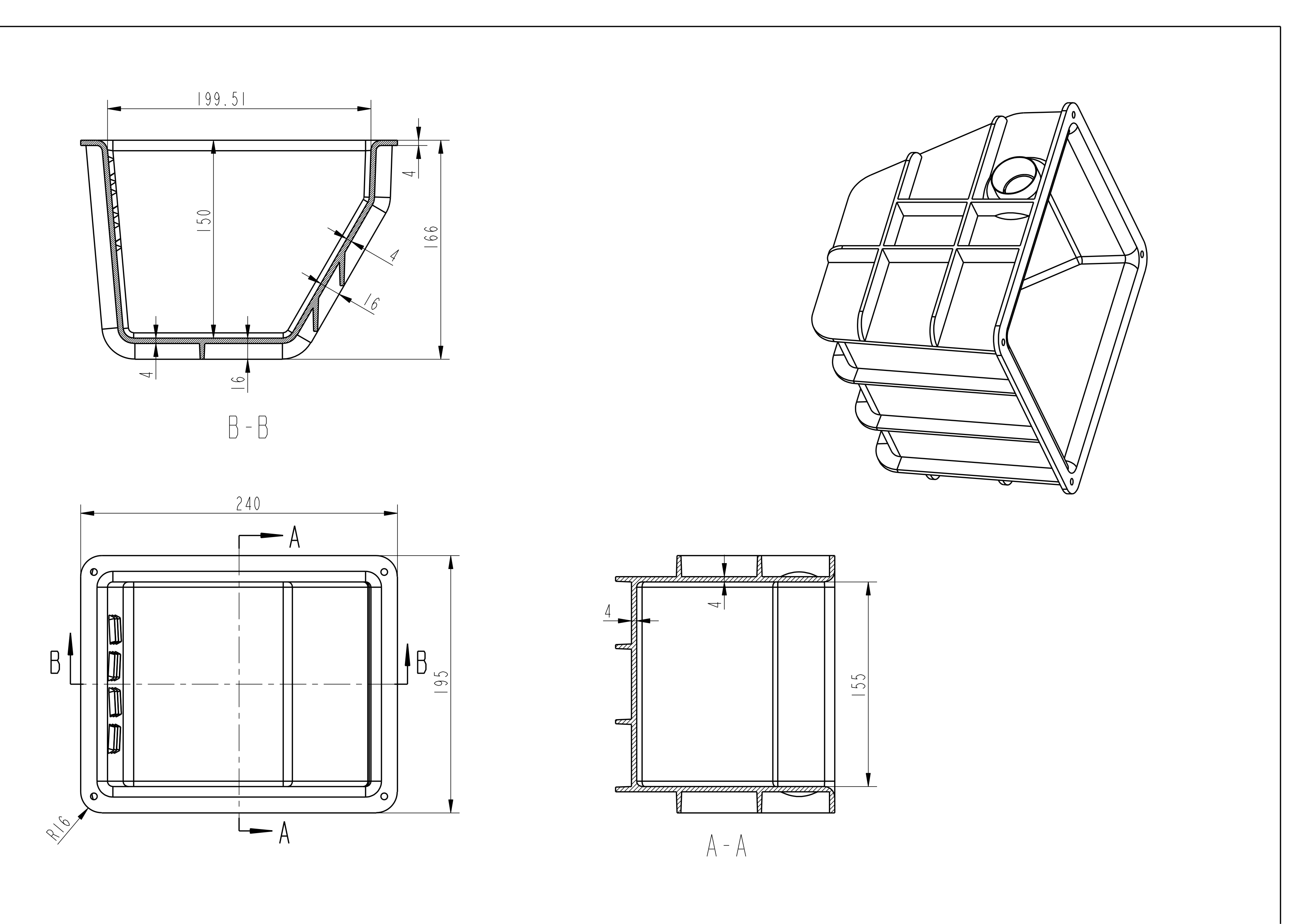

Internal dimensions: | Width 155mm Height 195mm Depth 150mm |
External dimensions: | Width 195mm Height 240mm Depth 166mm |
Design: | The tread surface has a non-slip profile. With handle. |
Specification text
Pocket Manhole Steps with handle for setting in concrete, made of PP in accordance with DIN 8077 and DIN 8078, as a closed box, open at the front and bevelled. With hole for attachment to the formwork. Dimensions: 240x195x166mm (HxWxD). Climbing box, delivery and installation. System: Infrastep or equivalent.
