Manhole Steps Stainless Steel V2A, orange, Type A, Cl.1
Technical Data
Item number: | 910518 |
Identification: | LU-JX-21(A) |
Coating: | Polypropylene (PP) |
Material: | Stainless Steel V2A |
Colour: | orange |
Step width/depth: | 330mm / 150mm |
Diameter: | 26mm |
Side upstand: | 35mm |
Thread: | spiral-shaped |
Standard: | DIN V1264, DIN19555 und EN13101 |
Specification text
Manhole steps in accordance with DIN V1264, DIN 19555 and EN 13101 for single-run ladder systems: Infrastep or equivalent for single-run ladder systems (manhole steps) in type A, class 1. Material: stainless steel V2A with PP coating, colour: orange, deliver and install with a step height of 250–280 mm.

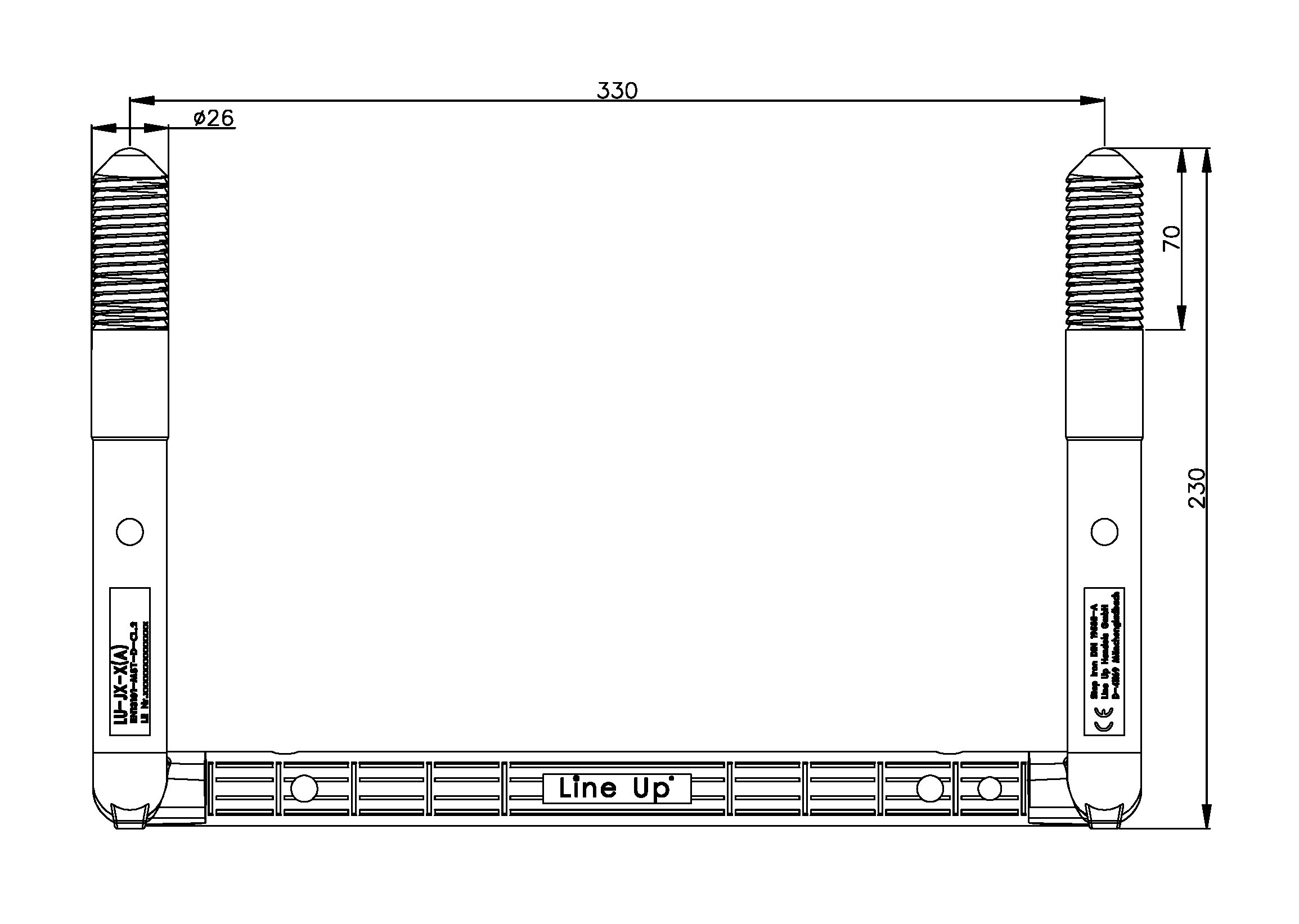

Technical drawings
